| Model Name | AN-084OPHA-T102 |
| Screen Saize | 8.4" |
| Power Consumption | DC 12V-4A |
| Backlinght | LED |
| Active Display Area(mm) | 170.4(H) x 127.8(V) |
| Pixel Pitch(mm) | 0.213(H) x 0.213 (V) |
| Display Mode | Normally White |
| Display Resolution(pIxel) | 800 x 600,1024 x 768 |
| Recommended Resolution | 800 x 600 60Hz/80Hz |
| Contrast Ratio | 600:1(typ.) |
| Display Color | 16.2M/262K colors |
| Brightness(CD/M^2) | 250(typ.) Lcfl=6mA |
| Viewing Angles(CR>=10) | 120(H);100(V) |
| Synchroniztion Range_Horizontal/Vertical | 31.5-37.5KHz/60-75Hz |

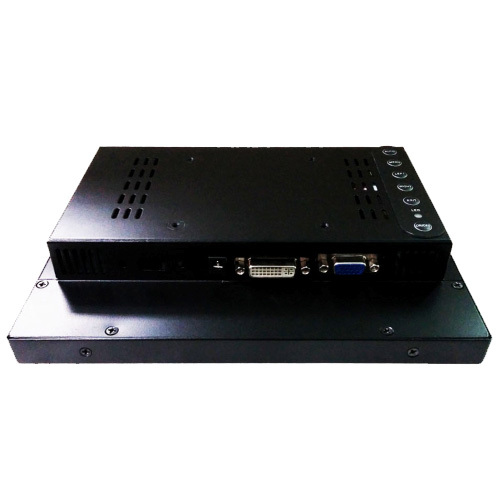

| Signal Connector | 15pin D-sub(VGA)/DVI-D |

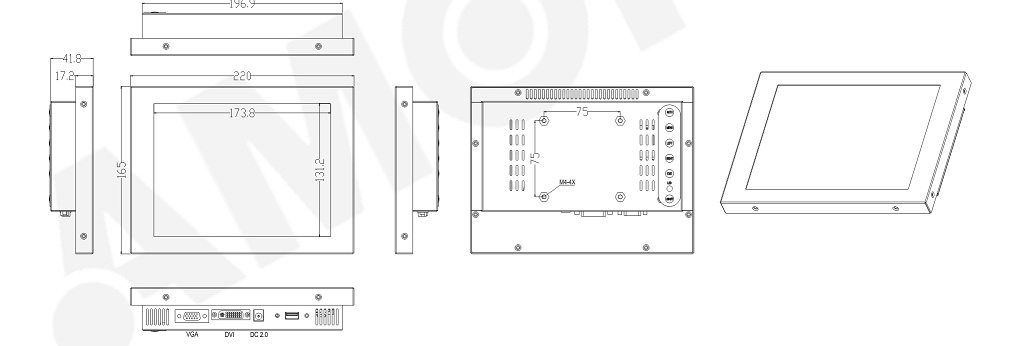

| Dimension(VxHxT) | 220 x 156 x 41.8mm |
| Working temperature/storage temperature | -20 ~ 70 °C /-30 ~80 °C |

| Model Name | Description |
| AN-084OPHA-T102 | OP With 8.4 " LCD, 250cd/㎡ 800 x 600 1024X768 Pixels LCD |
| Touch 0pen Frame Monitor VGA DVI | |
| 4,5-wire Resistive Touch Screens USB/RS232 (Optional) |
